Description
System Overview

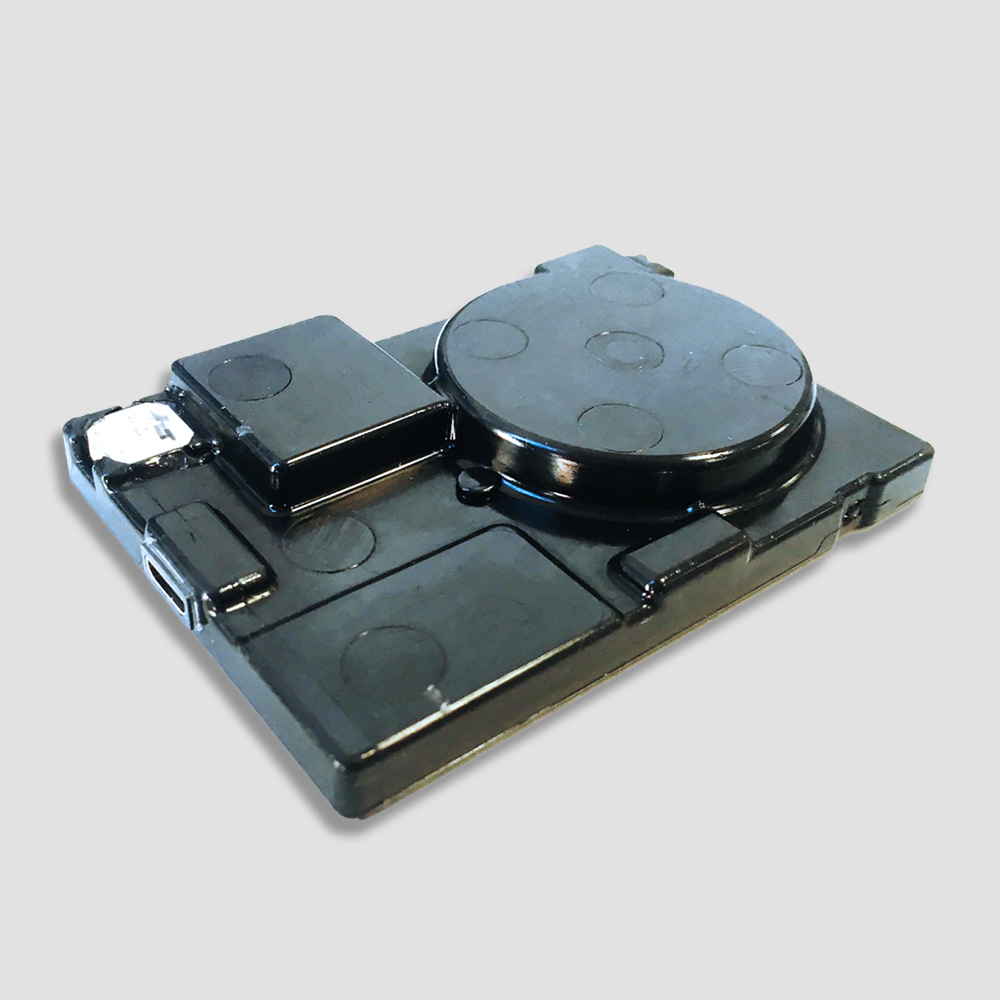

NeuraTrack is a low-power, sub 1 GHz long range, sensing GPS tracker. Designed for compliance with intrinsic safety requirements, it features a credit card form factor and can be fully encapsulated in a rugged eco-friendly techno polymer suitable for harsh environments.
The system features GPS/GNSS receiver, inertial sensors (accelerometer and gyroscope), a magnetometer and environmental sensors (ambient temperature and barometric pressure). It is equipped with on-board memory storage for data logging, a siren buzzer for acoustic alarm, a Bluetooth Low Energy transceiver for system configuration or beaconing, and a LoRaWAN module for low-power long-range communication.
Optimized for tracking applications, our customers use NeuraTrack mostly in combination with the NeuraDrive embedded AI for enabling driving style recognition, or the NeuraSafe library for lone worker / man down alarming.
What’s Included
The system features: 1x tri-axis accelerometer (up to ±16 g), 1x tri-axis gyroscope (up to ±2000 dps), 1x tri-axis magnetometer (up to ±50 Gauss). It includes a 500 mAh high density rechargeable lithium-ion battery (alternatively it can be powered directly by the 5V USB plug). Data logging memory is provided by a 1Gb NAND Flash memory.
The system has a miniature push button for ON/OFF operations or programmable functions (e.g. start/stop logging), visual interaction RGB LEDs and an acoustic siren.
Sensors
Accelerometer
Measurement range ±2 /±4 / ±8 / ±16 / ±32 g
Sensitivity 0.061 /0.122 / 0.244 / 0.488 mg/LSB
ODR max 50 Hz
Gyroscope
Measurement range ±125 / ±250 / ±500 / ±1000 /±2000 dps
Sensitivity 4.375 / 8.75 / 17.50 / 35 / 70 mdps/LSB
ODR max 50 Hz
Magnetometer
Measurement range ±50 Gauss
Sensitivity 1.5 mGauss/LSB
ODR max 50 Hz
Temperature
Measurement range -40 °C ~ +85 °C
Accuracy ±1.5 °C
Barometer
Measurement range 260 ~1260 hPa
Sensitivity ±0.5 hPa
System Specifications
Microcontroller
Core 1 Arm® Cortex®-M4F
Frequency Up to 80MHz
Communication Interface
Wired USB 2.0, type B connector
Wireless Bluetooth Low Energy v4.2
Data Storage
Data Memory 1 Gbit
Memory Type NAND Flash
Battery
Capacity 500 mAh
Dimension
Board 50 W x 70 L x 10 H mm
